Pengfa Low Pressure Pipe System, a superior product stemming from China's vibrant manufacturing industry, is produced by a highly esteemed manufacturer with decades of experience in the field of piping systems.
As a trusted supplier, we offer the Pengfa Low Pressure Pipe System, which combines exceptional durability, corrosion resistance, and ease of installation to cater to a wide range of low-pressure fluid applications. Engineered for optimal performance in a variety of settings, this pipe system ensures reliable and efficient fluid transportation while maintaining cost-effectiveness. The manufacturer's unwavering commitment to quality and innovation ensures that Pengfa Low Pressure Pipe System meets the highest industry standards, making it an ideal choice for projects requiring dependable and cost-efficient piping solutions.

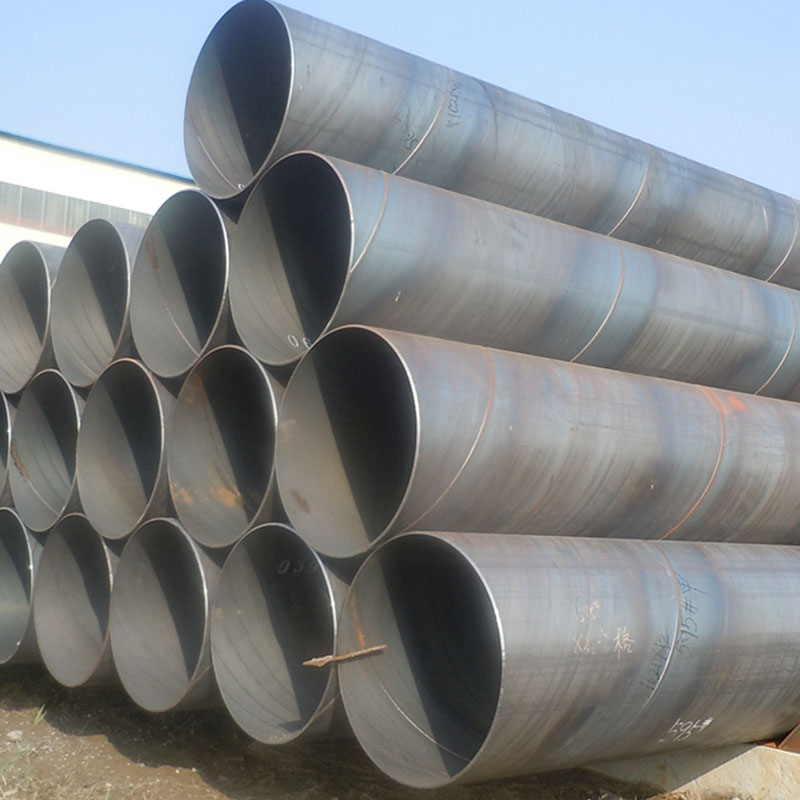

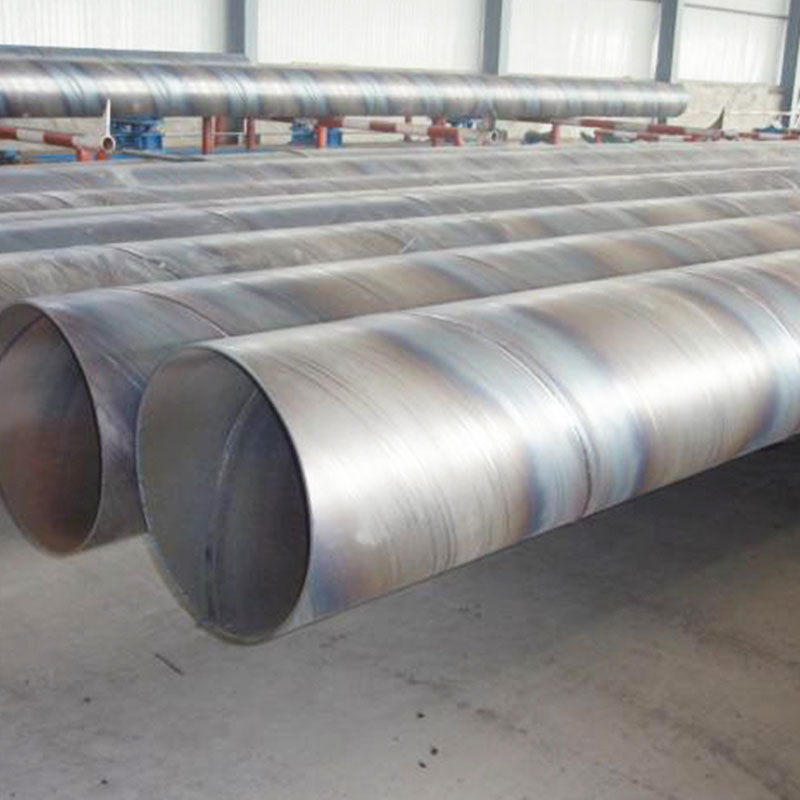

Process: Spiral Submerged- Arc Welded Steel Pipe
Usage: Used for low pressure liquid transportation, such as water, gas, and oil; construction and piping
Standard: ASTM A252, EN10217-1,2,5, EN10219-1, BS, JIS, IS
Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
Out Diameter: 219.1 mm – 3048mm (8″-120″)
Wall Thickness: 4mm – 30mm
Length: 3 – 70 M
SSAW, short for Spirally Submerged Arc Welding, means spirally submerged arc welding pipe, SSAW steel pipe is spirally submerged arc welding, also known as spiral steel pipe, spiral welded pipe or spiral pipe.
Spiral steel pipe is widely used in natural gas, petroleum, chemical industry, power, heat, water supply and drainage, steam heating, pressure steel pipe for hydropower station, thermal power generation, water and other long-distance transmission pipelines and piling, dredging, Bridges, steel structures and other engineering fields.
Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572 , JIS, IS
Steel Grade
API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H
Surface：Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil Coating As Per Customer’s Requirement
Test：Chemical Component Analysis, Mechanical Properties (Ultimate Tensile Strength, Yield Strength, Elongation), Technical Properties (Flattening Test, Bending Test, Impact Test), Exterior Size Inspection, Hydrostatic Test.
Mill Test Certificate：EN10204 3.1
Please contact us for more information
| Year 2023 | New Zealand | 422 Tons | Inventory, API 5L X52 PSL-1, SSAW steel pipe for stock (AL172) |
| Year 2023 | Zimbabwe | 400 Tons | Water Power Plant Construction, API 5L PSL1 GR.B, SSAW steel pipe for Water Power Plant Construction (CZ233) |
| Year 2022 | Ecuador | 1585Tons | piling construction, API 5L PSL1 X65 SIZE OD914, SSAW steel pipe for piling Construction |
| Year 2022 | Singapore | 3177 Tons | Subway Station Construction, EN 10219 S355JR, SSAW steel pipe for Subway Station Construction |
| Year 2022 | Kuwait | 740 Tons | Water well casing pipe, API 5L PSL1 GR.B, SSAW steel pipe for Water well casing pipe(YS110) |
| Year 2020 | Peru | 996 Tons | Dock Construction project, API 5L PSL2 X52 AND GR B, SSAW steel pipe for Dock Construction (JZ176) |
| Year 2020 | Malaysia | 540 Tons | Tunnel Construction, ASTM A53 GR.B, SSAW steel pipe for Tunnel Construction |
| Year 2019 | Egypt | 685 Tons | Dredging pipe, SY 5037 Q235B, SSAW steel pipe for Dredging(JH168) |
| Year 2019 | UAE | 2500 Tons | Civil drinking water pipeline, API 5L PSL1 GR.B, SSAW pipe with both side coating for Civil drinking water pipeline(ELL128) |
| Year 2018 | Romania | 1000 Tons | Oil and gas transportation, ISO 3183 L245NE/L360NE PSL2, SSAW pipe with 3pe coating for Oil and gas transportation |
| Year 2018 | Romania | 1300 Tons | Romania Port Construction, ISO 3183 L245, SSAW for Romania Port Construction |
| Year 2014 | Philippines | 1200 Tons | Hydro plant project, AWWA C200 Q345, SSAW for Hydro plant project(KC017) |
